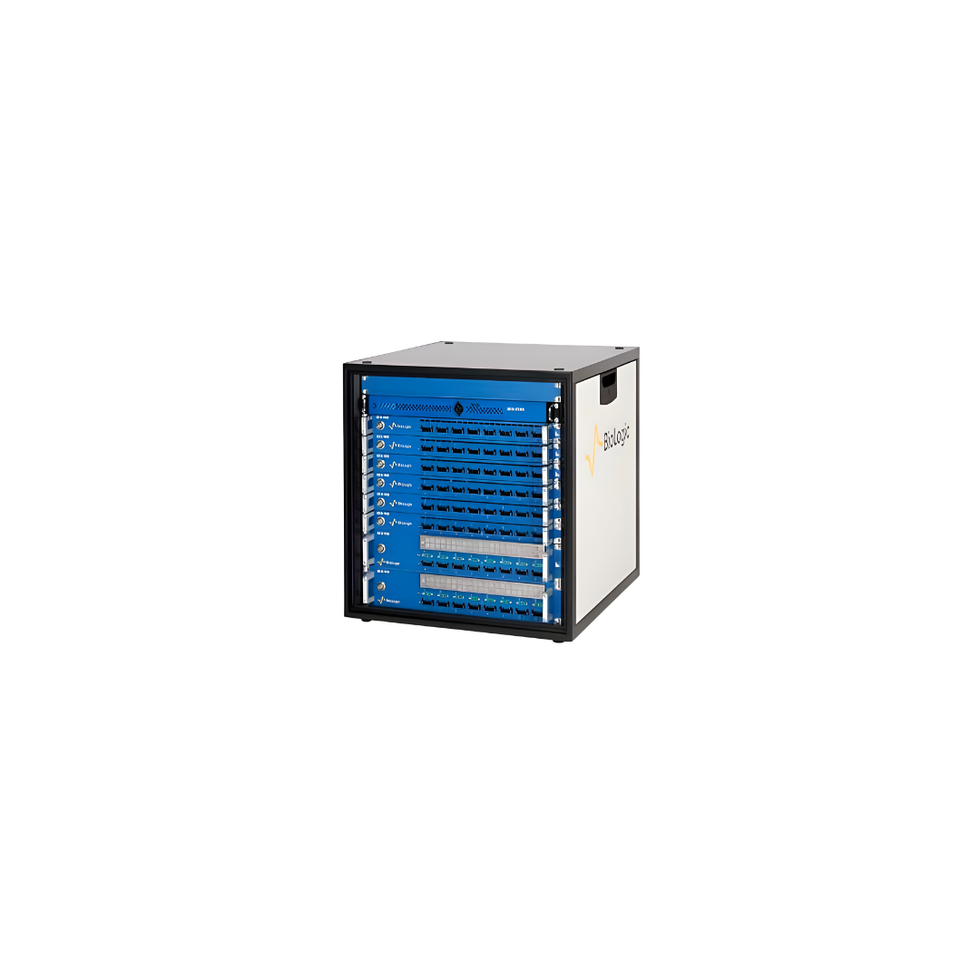

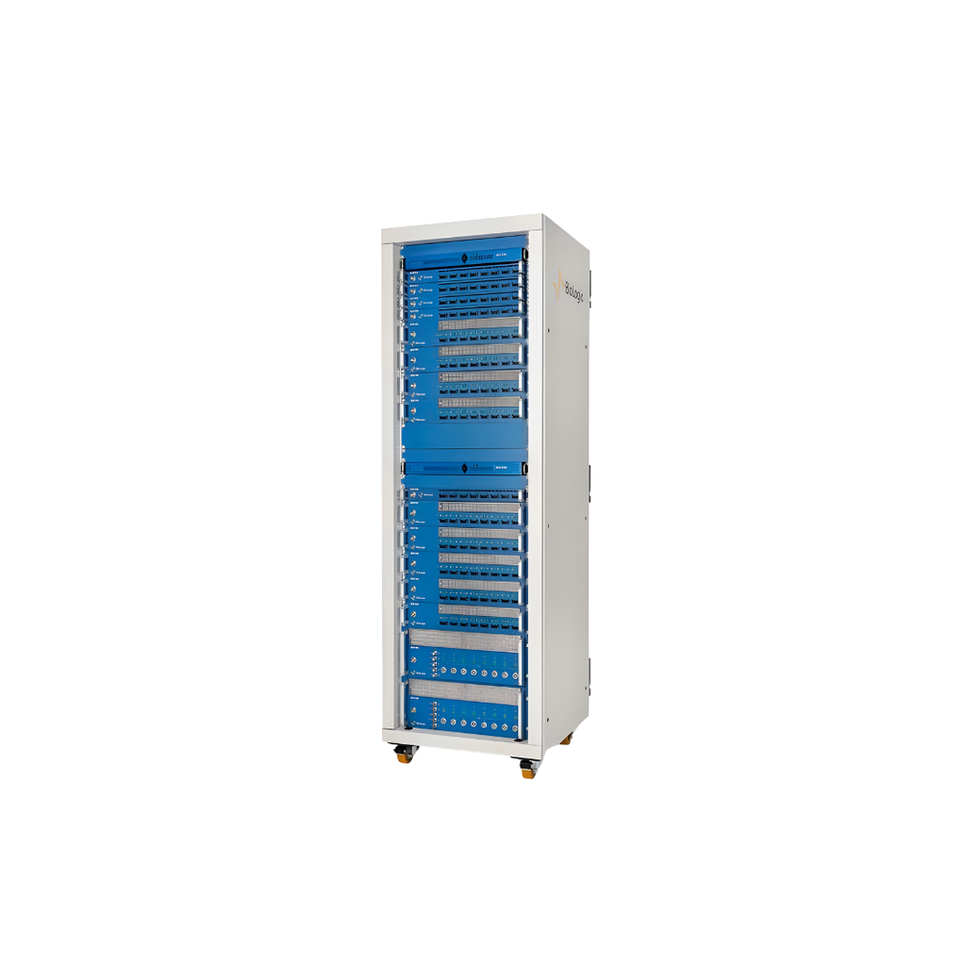

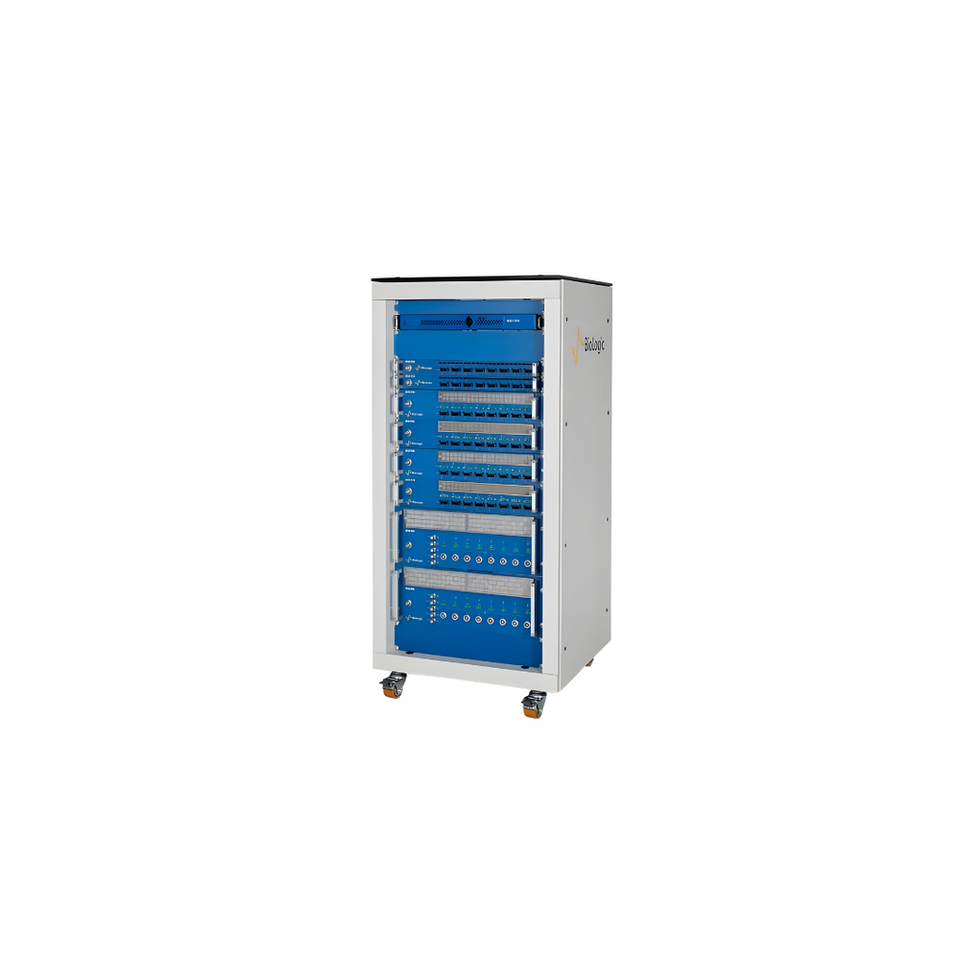

BCS-900
Premium Modular Battery Cycler with EIS
-8 independent channels per module -Multiple models: BCS-905 / 910 / 915 / 975R -Current range from ±150 mA up to ±75 A (expandable to 300 A) -Native EIS (optional) on every channel -High precision (nA-level current resolution) -Fast acquisition: down to 1 ms sampling -Modular system → scalable cabinet (6U–38U) -Advanced BT-Lab® Suite (BT-Test™ & BT-Analysis™) -Supports temperature measurement & external devices
Please add items to cart and submit for quotation.
Quantity
Description
The BCS-900 series is a high-end battery cycler platform designed for applications ranging from fundamental research to industrial validation. It offers a modular architecture with multiple current ranges, enabling users to tailor the system for different battery formats—from coin cells to large high-power cells. A key advantage of the BCS-900 series is its optional built-in EIS capability, allowing advanced diagnostics such as internal resistance, state-of-health (SOH), and state-of-charge (SOC) without additional instruments. Combined with the BT-Lab® software suite, the system provides powerful tools for experiment control, real-time monitoring, and automated data analysis.
Specifications
Channels : 8 per module Voltage range : up to 10 V Current range : ±150 mA to ±75 A Parallel current : up to 300 A Current resolution : down to nA level Voltage resolution : ~40 µV (18-bit) Sampling rate : 1 ms EIS : Optional (10 kHz – 10 mHz) Connection : 4-terminal (Kelvin) Modular system : Yes (multi-cabinet)
Application
BCS-900 is ideal for : Advanced battery R&D Electrochemical impedance spectroscopy (EIS) Battery aging & degradation studies High precision coulometry (HPC) Pilot production & validation Multi-scale battery testing (coin → pouch → large cells)
