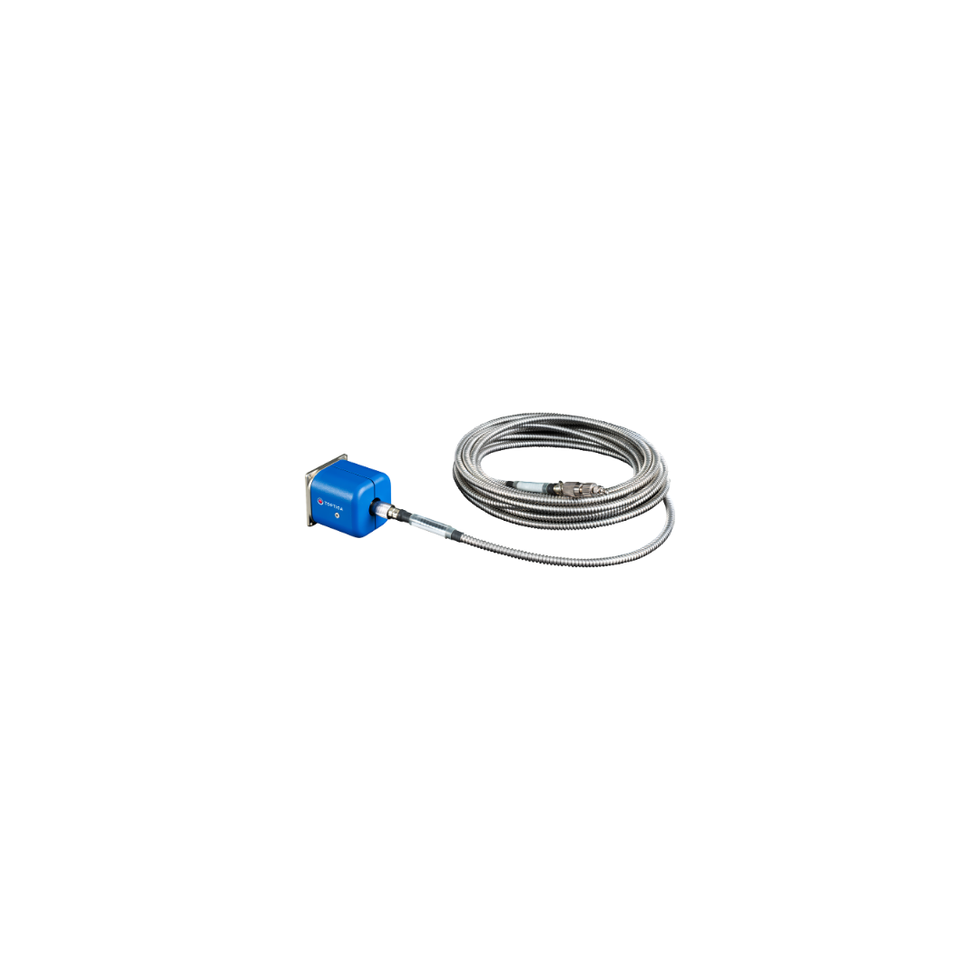

FiberDock
Universal fiber coupler
Quantity
Key Highlights
- Universal coupling solution for connecting free-space laser beams to optical fibers
- Compatible with both TOPTICA and third-party laser systems
- Patented flexure hinge design for excellent long-term stability
- Coupling accuracy well below 1 µm
- Up to 90% single-mode coupling efficiency
- Convenient multi-axis alignment for precise fiber coupling
- Customizable focusing optics based on wavelength, beam diameter, and fiber mode field diameter
- Supports wavelengths from 350 nm to 3000 nm
- Available with single-mode, polarization-maintaining, and multi-mode fibers
- Standard FC/APC and FC/PC connector options
Description
Connecting free-space optics to a fiber should be simple, reliable, and efficient. The FiberDock™ makes this step effortless, helping you get the most out of your light without adding complexity to your setup.
Designed as a versatile fiber coupler, the FiberDock™ works seamlessly with both TOPTICA laser systems and third-party sources. Its patented flexure hinge design enables the highest coupling efficiencies while maintaining excellent long-term stability, so once aligned, it stays aligned. To ensure optimal performance, each FiberDock™ can be tailored to your application. Based on your laser parameters, such as wavelength from 350 nm to 3000 nm, beam diameter, and fiber mode field diameter, we select and integrate the ideal focusing optics for you. With its wide range of variants and options, the FiberDock™ is a universal tool for linking free-space beams and fiber-based systems, making your optical setup easier, more stable, and ready to perform.
Specifications
Product Type: Universal Fiber Coupler
Coupling Type: Free-space to fiber
Wavelength Range: 350–3000 nm
Single-Mode Coupling Efficiency: Up to 90%
Coupling Accuracy: Well below 1 µm
Focusing Lens Focal Length: 1.5–30 mm
Standard Lens Range: 4–20 mm
Clear Aperture: Up to 6 mm
Fiber Types: Single-mode (SM), Single-mode Polarization Maintaining (SM/PM), Multi-mode
Fiber Connectors: FC/APC, FC/PC
Alignment: Fiber tip X/Y, lens Z, beam X/Y
Available Versions: FiberDock SA, SmartDock (OEM)
Mounting: Optical table / standard post
Customization: Custom coupling optics, fiber type, and connector options
Specifications and available configurations may vary depending on the selected FiberDock version and application requirements.
Application
- Quantum Physics & Quantum Optics – Fiber coupling for laser-based quantum experiments, atom optics, photonics, and related research.
- Life Science & Medical – Fiber delivery and collection of laser light for optical analysis, diagnostics, and research instrumentation.
- Test & Measurement – Coupling laser sources into fiber-based measurement and metrology systems.
- Laser Systems – Connecting free-space laser output to fiber-optic components and systems.
- Optical Research & Photonics – Stable and precise fiber coupling for laboratory optical setups and experimental systems.
