BVT Classic Working Electrode

Working classic electrode designed for routine use as (non-rotating) working electrodes.

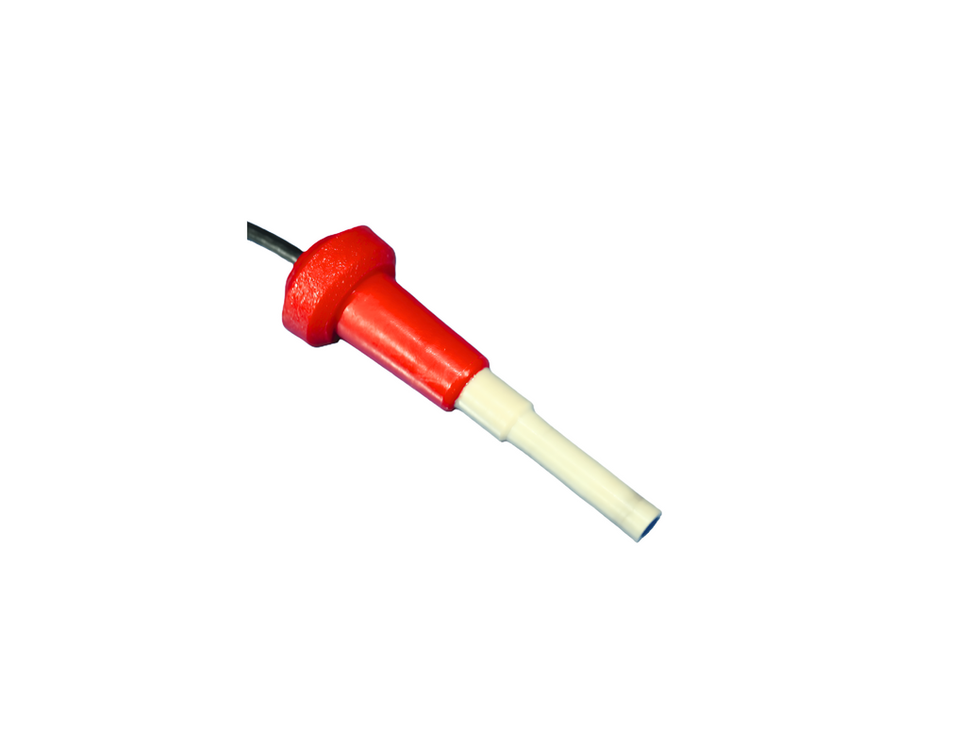

Encased in a PEEK tube, the WCEc holds a Pt, Au, or GC wire, with only the disc section exposed, mirror-polished. Its connection is a 2 mm banana receptacle in red color. The conic connection design fits with BVT TC4, TC5, TC6, and TC9 glass cells.

Options

• Platinum 100 µm (Ref. WCEc.WS.D1)

• Platinum 600 µm (Ref. WCEc.WS.D2)

• Platinum 1000 µm (Ref. WCEc.WS.D3)

• Gold 20 µm (Ref. WCEc.W1.D4)

• Gold 20 µm (Ref. WCEc.W1.D5)

• Glassy carbon,1000 µm (Ref. WCEc.W2.D6)

• Glassy carbon,3000 µm (Ref. WCEc.W2.D7)

Weight : 0.05 kg Brand : BVT Technologies Electrode type : Working Electrode Electrode active material : Platinum, Gold, Glassy Carbon Body / coat material : PEEK Electrode (inner) diameter : 20 µm, 0.1 mm, 0.6 mm, 1 mm, 3 mm Outer diameter : 11 mm WE geometric area : 0.28 mm², 79 µm², 7850 µm², 0.79 mm², 7.07 mm² Length : 57 mm
