HCP-1005
High Current Potentiostat (±100 A) for Battery Testing
-Ultra-high current: ±100 A (built-in booster) -Designed for high-capacity battery testing (Li-ion, etc.) -Integrated EIS (10 kHz – 10 µHz) -Combines research-grade accuracy + high power -Real-time data processing (charge, discharge, energy tracking) -Multi-interface: Ethernet / LAN / WiFi / USB -Powered by EC-Lab® software (advanced analysis) -Supports 2–5 electrode configurations
Please add items to cart and submit for quotation.
Quantity
Description

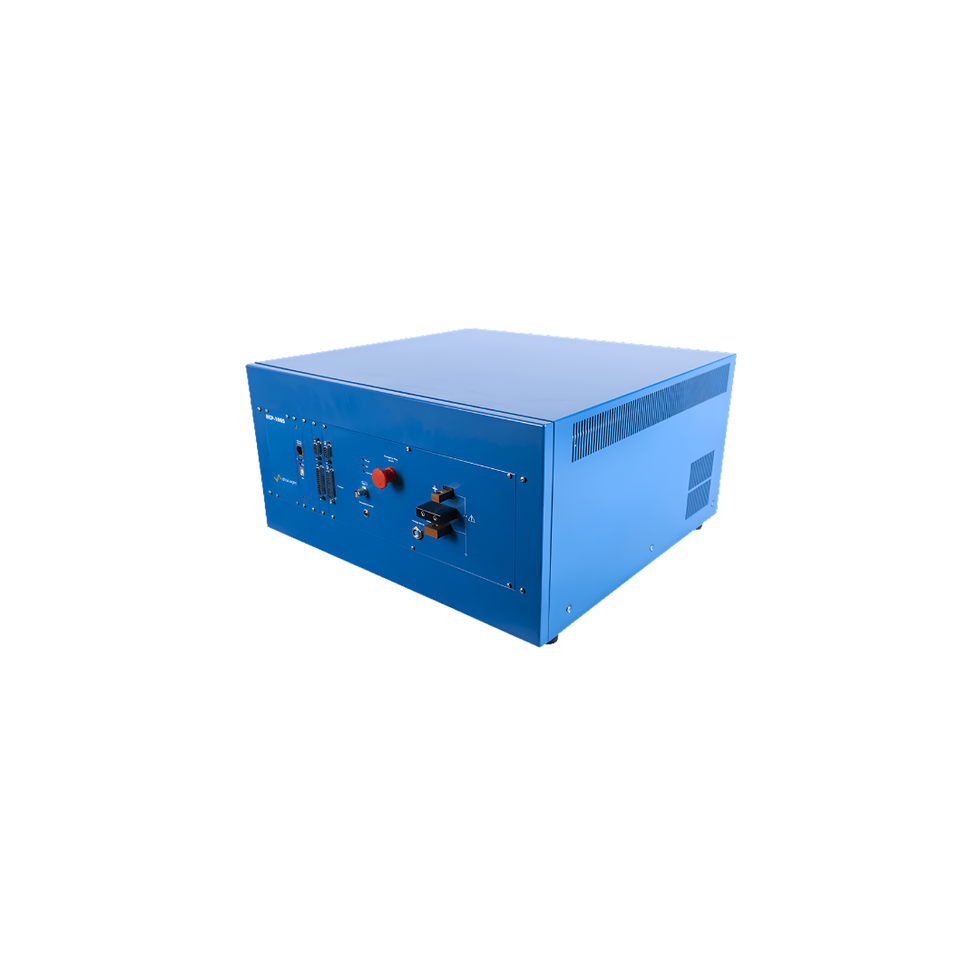

The HCP-1005 is a compact high-current electrochemical workstation specifically designed for high-capacity secondary batteries. It integrates a 100 A booster directly into the system, enabling powerful testing without external modules. With a voltage range up to 5 V and built-in EIS capability, it allows researchers to perform battery cycling, aging studies, and impedance analysis within a single platform. The system combines precision control of a research potentiostat with industrial-level current capability, making it ideal for both laboratory and pilot-scale battery research.
Specifications
Channels : 1 Max current : ±100 A Voltage range : 0.6 – 5 V Compliance voltage : 6 V Current accuracy : <0.5% FSR Voltage accuracy : <0.1% FSR EIS frequency : 10 kHz – 10 µHz Acquisition time : 20 µs / 200 µs Interfaces : Ethernet, LAN, WiFi, USB Power : ~1000 W Electrode config : 2, 3, 4, 5 electrodes
Application
HCP-1005 is ideal for : High-capacity battery testing (Li-ion, NiMH, etc.) Battery cycling & aging studies Electrochemical impedance spectroscopy (EIS) Battery stack testing (high current) Electroplating processes Energy storage system evaluation
