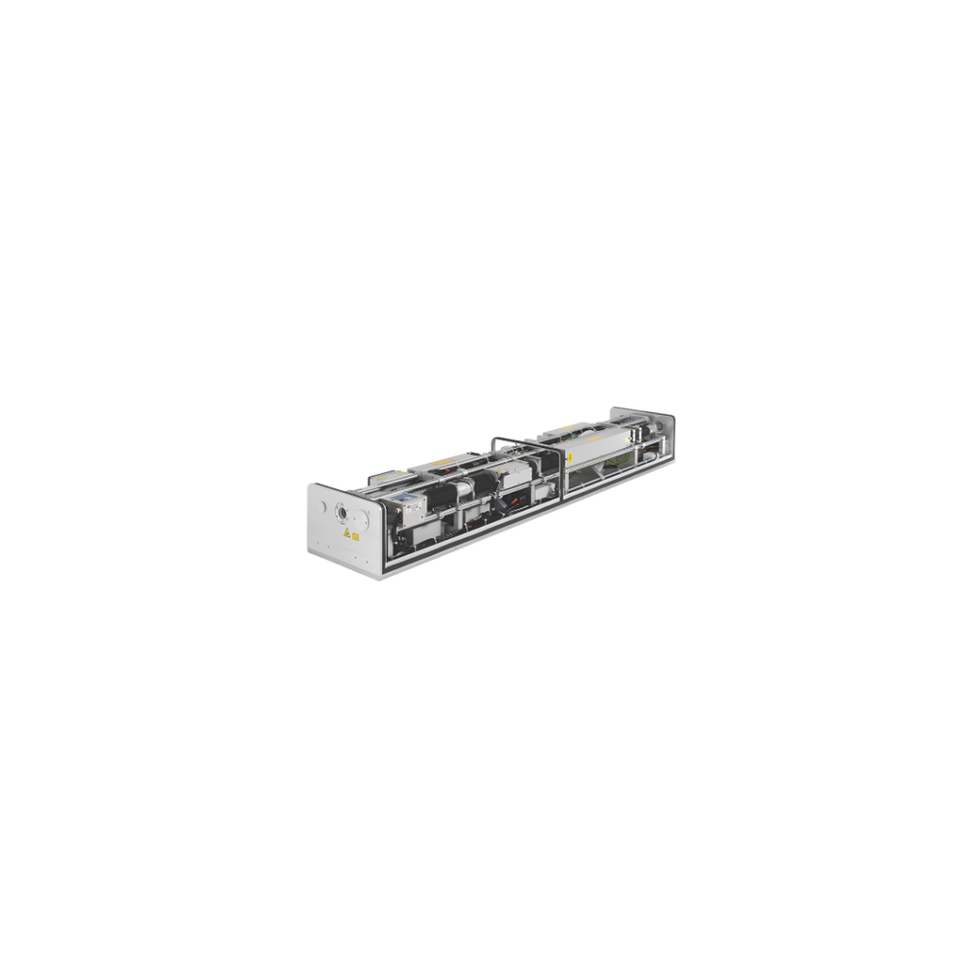

LPY7000
Ultra-High-Energy Pulsed Q-switched Nd:YAG Lasers with Energies up to 3.5 J at 1064 nm, and Repetition Rates up to 50 Hz
Quantity
Key Highlights
- Rugged industrial build
- Up to 3.5 J at 1064 nm
- Telescopic or super-Gaussian resonators
- Optional seeder package
- All harmonics up to the 5th available
- Full RS232 software control
Description
The LPY7000 lasers offer extremely high Q-switched outputs at repetition rates of up to 50Hz. Based on our proven self-supporting Invar frame, their robust build quality suits them for both industrial and scientific applications.
The lasers are provided in an oscillator, pre-amplifier, and main-amplifier arrangement. The oscillator may be configured as a stable-telescopic resonator offering a low-order multimode output with a smooth spatial and temporal profile or as a super-Gaussian coupled resonator offering a single transverse mode output with slightly higher peak powers.
Lamp change is performed in a matter of minutes with no need for any realignment at all. An IP54 sealed case ensures that the laser is protected against the ingress of dirt and moisture when used in industrial environments.
For very narrow linewidths, an optional injection seeder is available.
Specifications
Laser Type: Q-switched Nd
Fundamental Wavelength: 1064 nm
Maximum Pulse Energy: Up to 3.5 J
Repetition Rate: Up to 50 Hz
Resonator: Stable-Telescopic / Super-Gaussian
Harmonics: 532 / 355 / 266 / 213 nm
Configuration: Oscillator / Pre-Amplifier / Main-Amplifier
Injection Seeding: Optional
Control Interface: RS232
Environmental Protection: Optional IP54 sealed case
Application
- Dye Laser Pumping
- OPO Pumping
- Spectroscopy
- LIBS
- LIDAR
- LIDT
- Pulsed Laser Deposition
- Thomson Scattering
