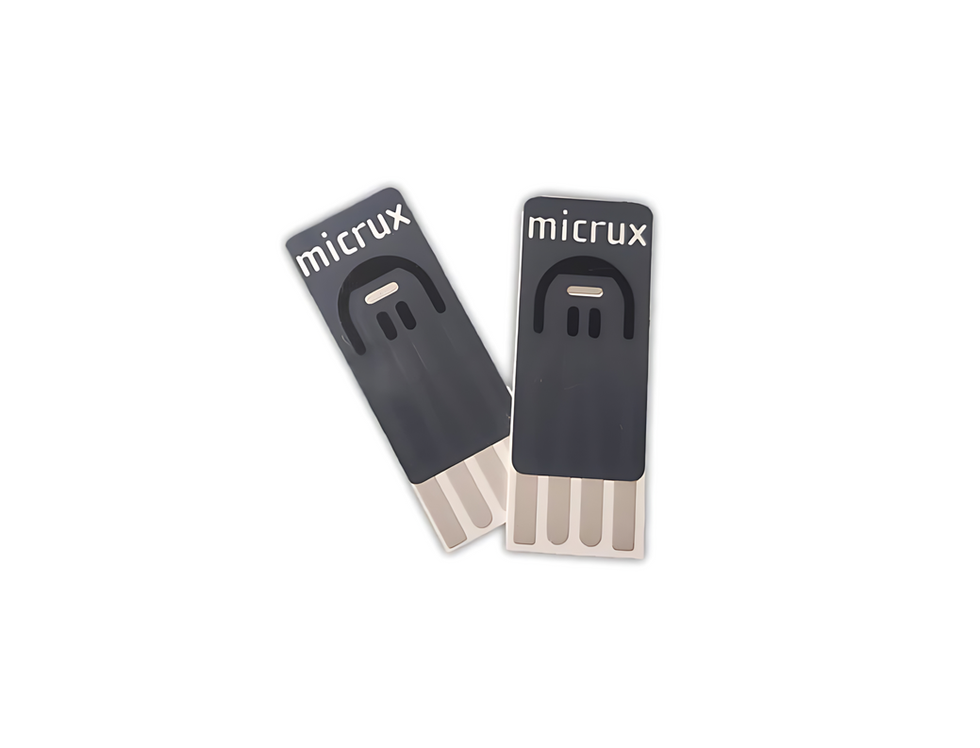

Micrux SPE with 2 Working Electrodes
Dual-WE SPE with RE separated from the CE
- 4-electrodes system: WE1, WE2, RE and CE
- Flexible and highly-resistant PET as substrate
- Micrux 4-pin connection
Quantity
Description
Dual screen-printed electrodes are based on a four-electrodes approach with two working electrodes (WE1 / WE2), sharing a reference (RE) and an auxiliary (counter) (AE or CE) electrode independent from the RE. A very affordable solution suitable for the development of multiplexed chemical-sensors and bio-sensors for field analysis.
The material of the working and counter electrode is made from carbon with a high-performance ink. The reference electrode is silver-made. The carbon layer is 350~380 μm thick. The working electrode has a diameter of 2.5 mm for the dual SPEs.
Sensors are packed per 50 in a box. You can connect a Micrux screen-printed electrode using the Micrux 4-electrode adapter.
More information is available at the specifications tab or here for the dual-WE SPE.
Ref. MX-ED-D2PE-C10
Specifications
Brand : Micrux Technologies
Sensor type : Screen-printed
Amount of WEs : 2
WE material : Carbon
WE/CE material : Carbon – high performance
RE material : Silver
Support material : Ceramic, White PET
CE material : Carbon
Electrode system : CE + RE + 2xWE
Combined RE and CE : No
Support dimensions : 10.1 by 27.5 mm
Possible applications : Amperometric Biosensors, Biosensors based on oxidases,Point-of-care Devices, Immonuassays, Sensors Biosensors Immunosensors
Surface modification : Blank
Required adapter
A Micrux adapter is needed to connect the 4-pin sensors
