OG Carbon SPE

OG Carbon creates disposable and high quality screen-printed electrodes. The low standard deviation results in great repeatability. These sensors are great for biosensor research, quality control systems and teaching of electrochemistry. OG Carbon can customize electrodes as well on request.

Features

• Screen Printed Electrodes
• Carbon (Graphite) counter and working electrode
  • Optional: a Silver underlayer which decreases track resistance
• Silver/silver chloride reference electrode
• Dimensions: 10 mm x 33 mm x 0.25 mm
• 4 mm working electrode diameter

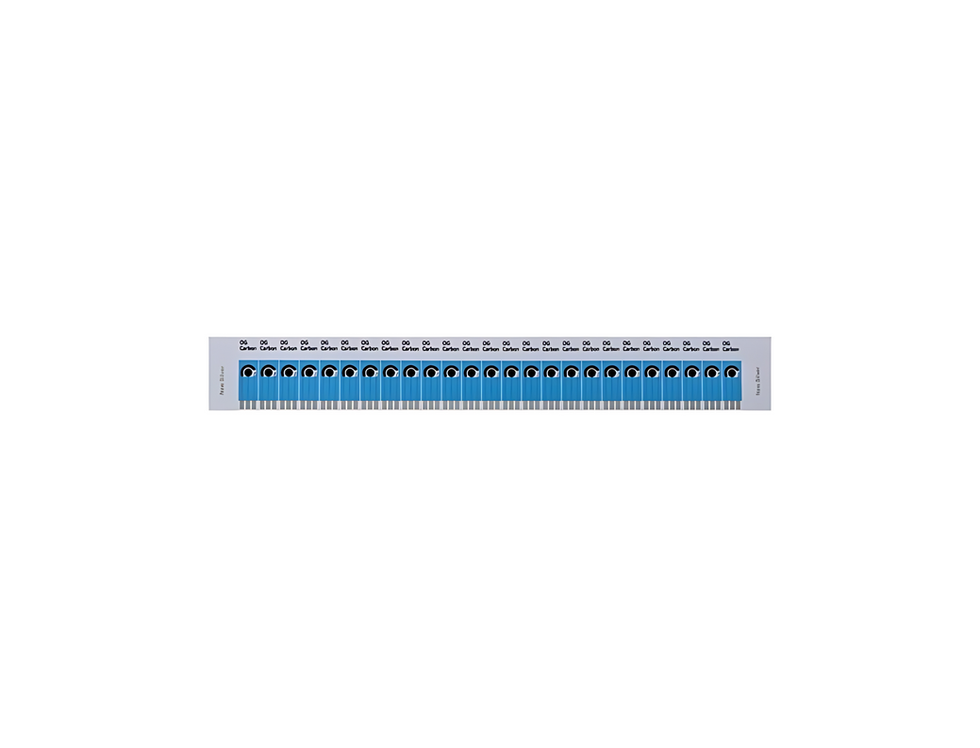

• Packed per strip of 25 sensors
• Substrate: PET base layer
• Compatible with common potentiostats

Materials

These sensors have a PET substrate, with carbon / graphite working and counter electrodes, and a silver/silver chloride (Ag/AgCl) reference electrode. The mating trace leads are designed to interface with common potentiostat accessories as well as banana plugs or alligator clips.

For more information, please view the OG Carbon website.

WE material : Carbon

Surface modification : Blank

Brand : OG Carbon

Amount of WEs : 1

CE material : Carbon

Electrode system : CE + RE + WE

Combined RE and CE : No

Ø of the disc WE : 4 mm

WE geometric area : 12.57 mm²

RE material : Silver and Silver Chloride Mixed

Support material : White PET

Support dimensions : 10 by 33 mm

Possible analytes : naphthol, dopamine, metals, para-aminophenol, metal complexes, other redox active species

Possible applications : Electrolysis, Modification with biomolecules, aryl layers (diazonium chemistry) or similar, Detection of redox active species

Sensor type : Screen-printed

WE/CE material : Carbon, Carbon with Silver Underlayer
