Redox.me – Basic Electrochemical Cell Setup

This is a stationary solution basic electrochemical (electrolytic) cell for measurements of electrodes in a form of:

• rod/disc of 6 mm in diameter,

• thin film deposited on flat substrate, using a clip electrode and

• membrane, using a clip electrode.

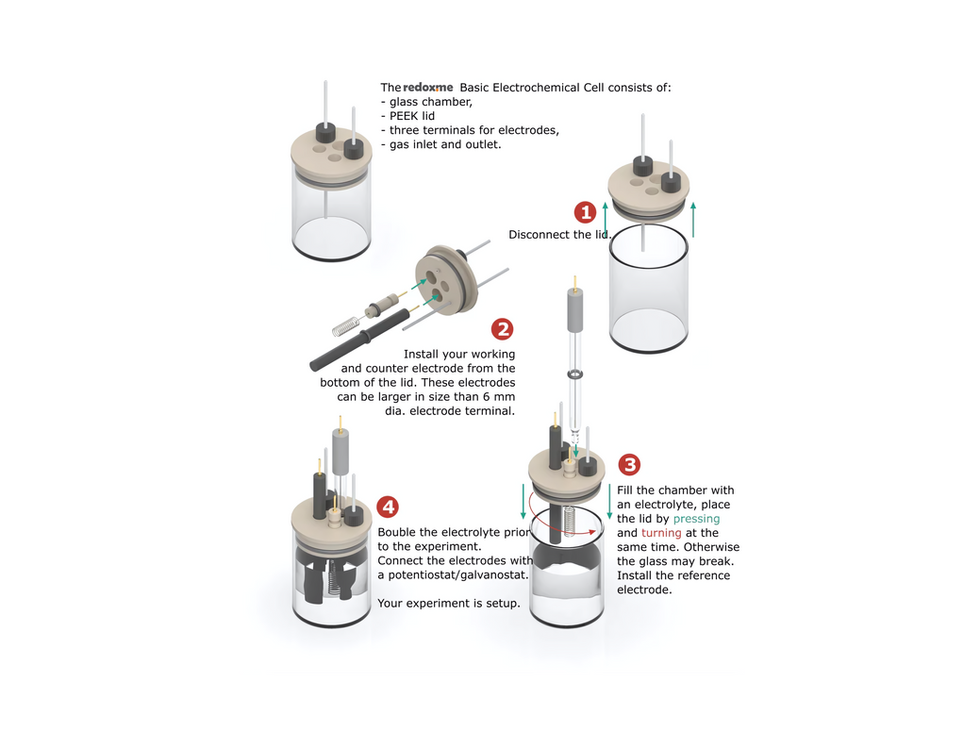

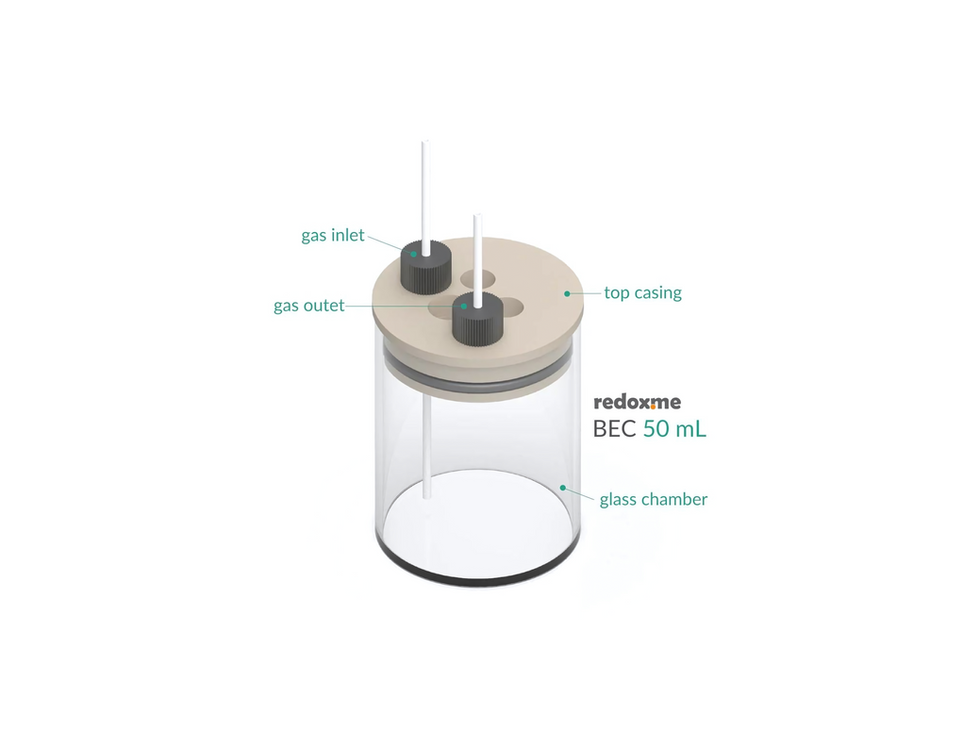

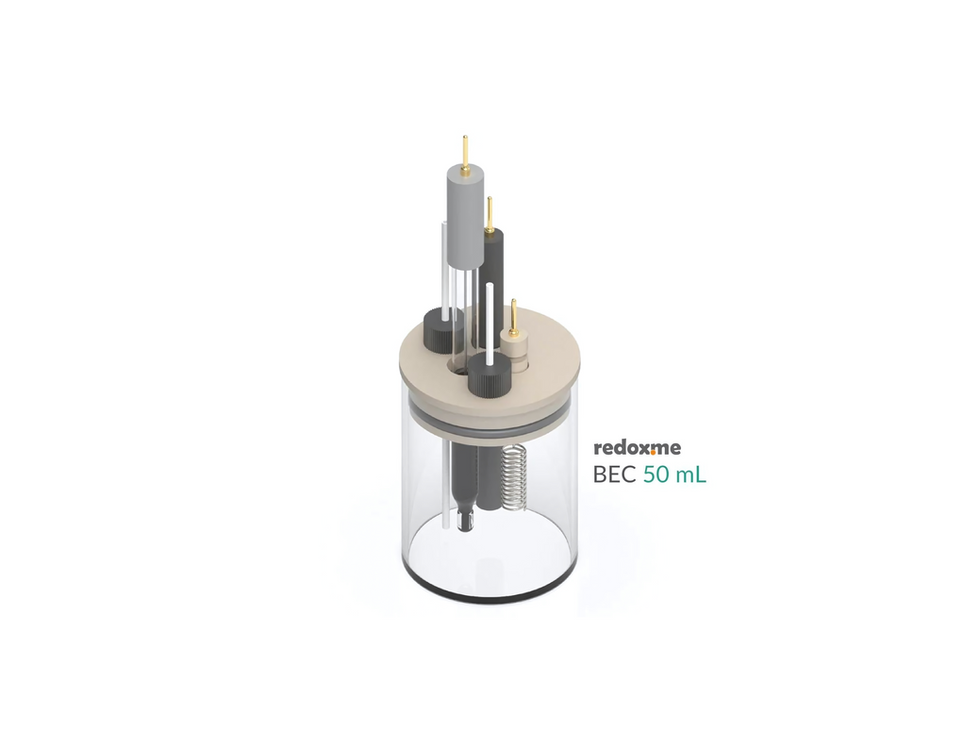

The working, counter and reference electrodes are mounted in a top casing either in 2-, or 3-electrode setup. The cell elements are constructed with materials that are inert to the sample (glass and PEEK). It well fits aqueous (EPDM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight and can be used when the removal and exclusion of contaminants such as oxygen and water is required by bubbling of an inert gas through the electrolyte. See the assembly demonstration here. The cell chamber is available in several material variants.

Variants

• Water-based electrolyte

• Organic-based electrolyte

Application note The reference electrode tip should be placed at the level of working electrode center. This will ensure a low potential drop throughout the electrolyte solution for low-current experiment. Various auxiliary/counter electrodes are suitable for this cell including metal wire and metal foil electrodes as well as graphite rod. The bubbling of gas through the solution must be stopped prior to experiment.

Specification

• maximum electrolyte volume: 50 mL

• electrode plug diameter : 6 mm

Intrastat data

• HS Code: 90309000

• Country of Origin: Sweden

• NET weight: 100g

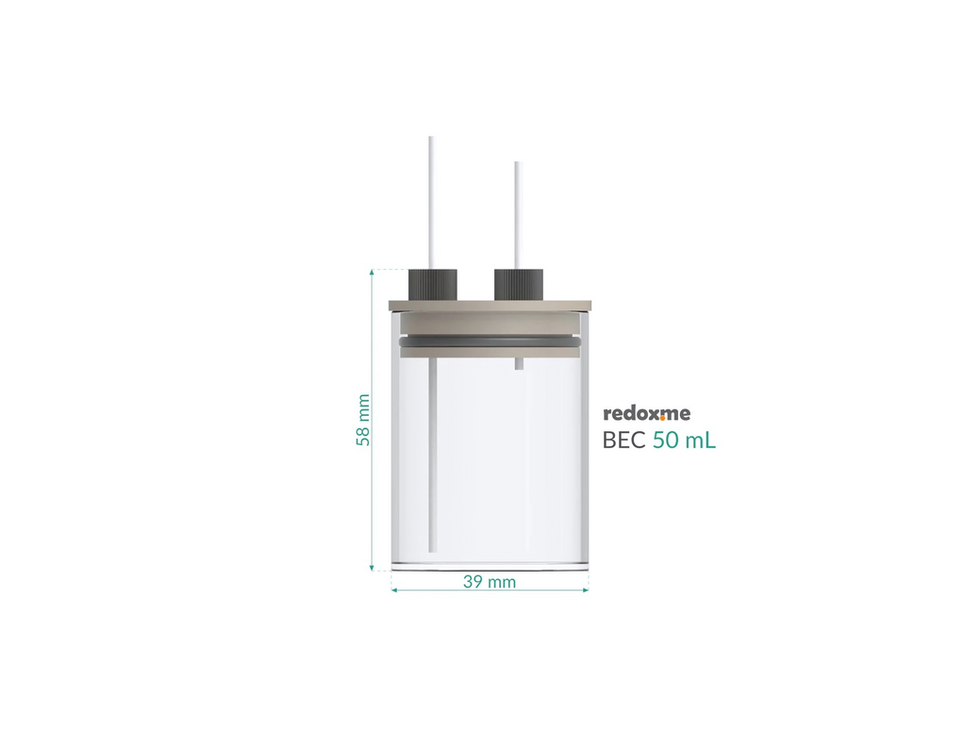

Weight : 0.1 kg Dimensions : 39 × 39 × 58 cm Brand : Redox.me Accessory type : Cell Compatible with : EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT Electrolyte type : Organic solvent based, Water-based
