Redox.me – Photo-Electrochemical H-Cell

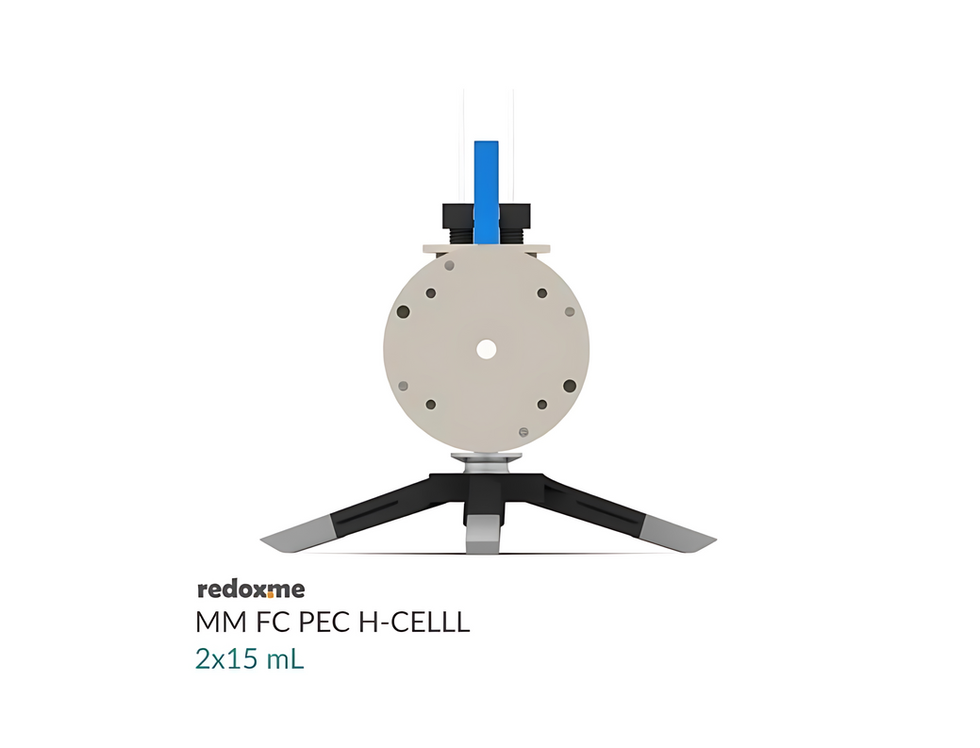

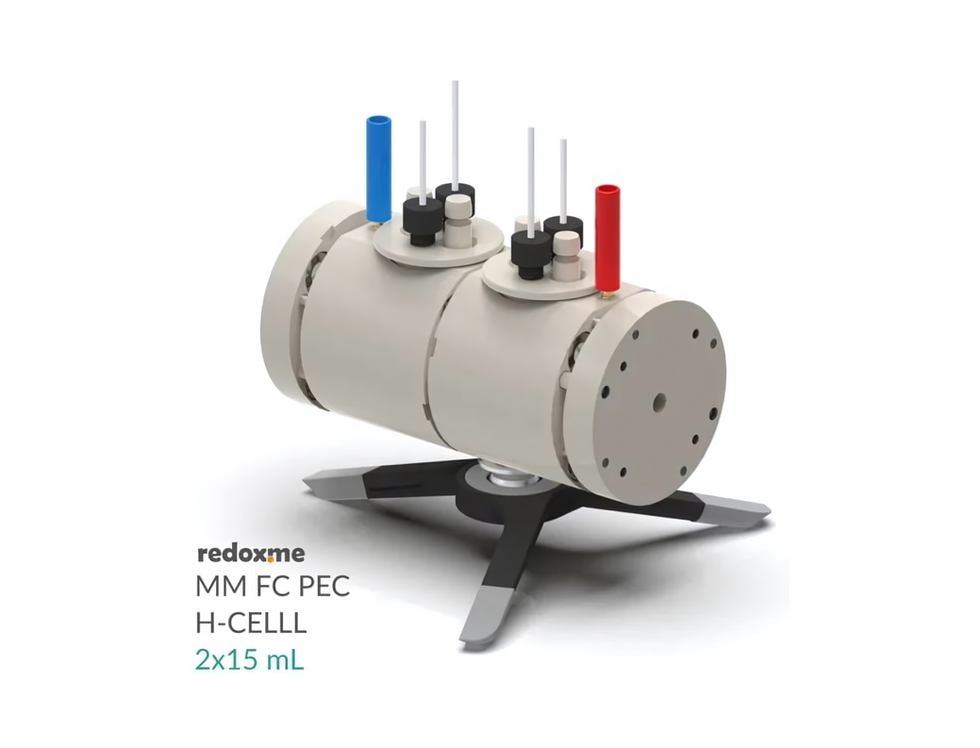

This is a horizontally mounted, double compartment photo-electrochemical H-Cell used to simultaneously or individually investigate thin film photo-anode and photo-cathode. The cell elements are made of PEEK and Fluoropolymers. It well fits aqueous (FKM O-Rings) and organic solvent (FFKM O-Rings) electrolyte requirements. The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers are separated with an ion-exchange membrane (e.g. DuPont’s Nafion® membrane), so the electrochemical products appearing at photo-anode and (photo-)cathode do not affect the opposite electrode. Screw mount and hook clamp versions of this cell are available on request.

Variants

• Water-based electrolyte

• Organic-based electrolyte

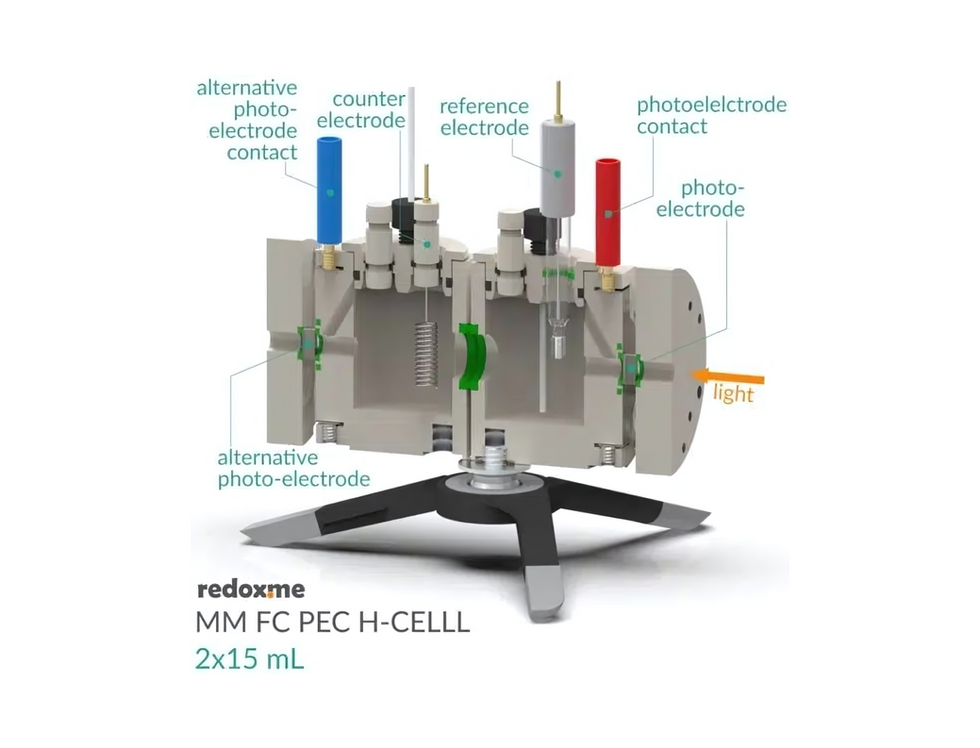

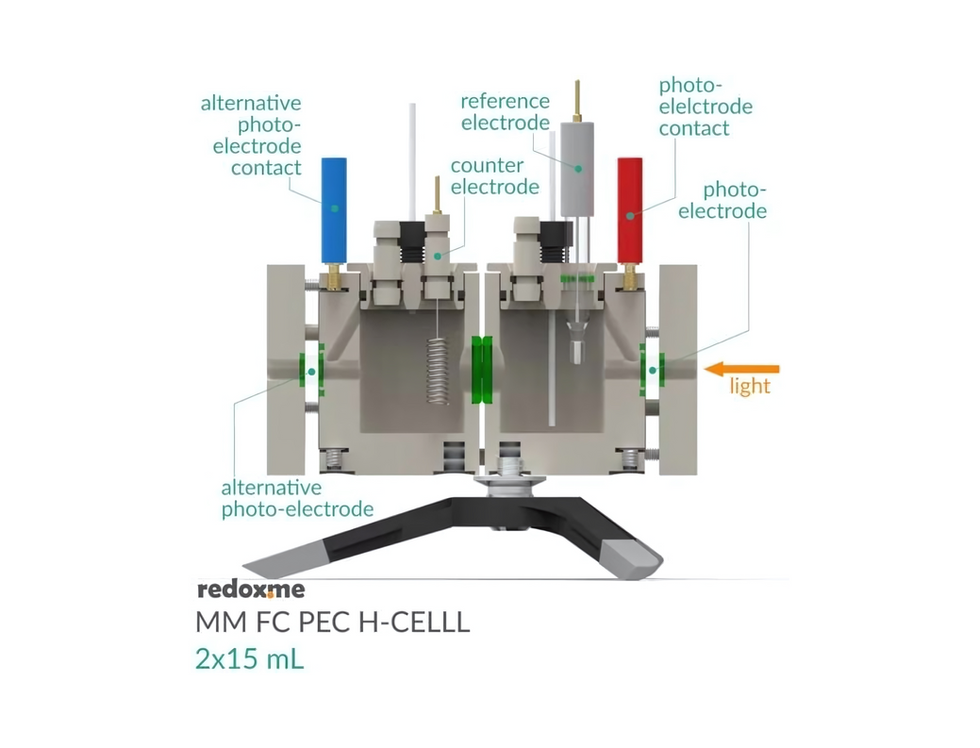

Application note This cell allows several approaches to perform measurements in 2- or 3-electrode setups. It is designed to investigate performance of a thin film photo-anode or photo-cathode (e.g. nanocrystalline material or conducting polymer) deposited on a rigid or flexible transparent substrate (typically fused quartz glass). The counter electrode is mounted in the second chamber either in a top casing or attached on the side of the cell as a thin film deposited on rigid or flexible substrate. The reference electrode is mounted in a top casing of the same chamber as the studied photo-electrode. Various auxiliary electrodes are suitable for this cell including metal wire, gauze and foil electrodes as well as non-metal electrodes and thin films. Typical applications include: basic photochemistry (photo-catalysis), photolytic water splitting, photoinduced charge separation and photo-corrosion. For troubleshooting instruction see the redox.me blog post.

Specification

• minimum electrolyte volume: 2×10 mL

• maximum electrolyte volume: 2×15 mL

• electrode plug diameter: 6 m

• maximum substrate thickness: 3 mm

Intrastat data

• HS Code: 90309000

• Country of Origin: Sweden

• NET weight: 500g

Product includes

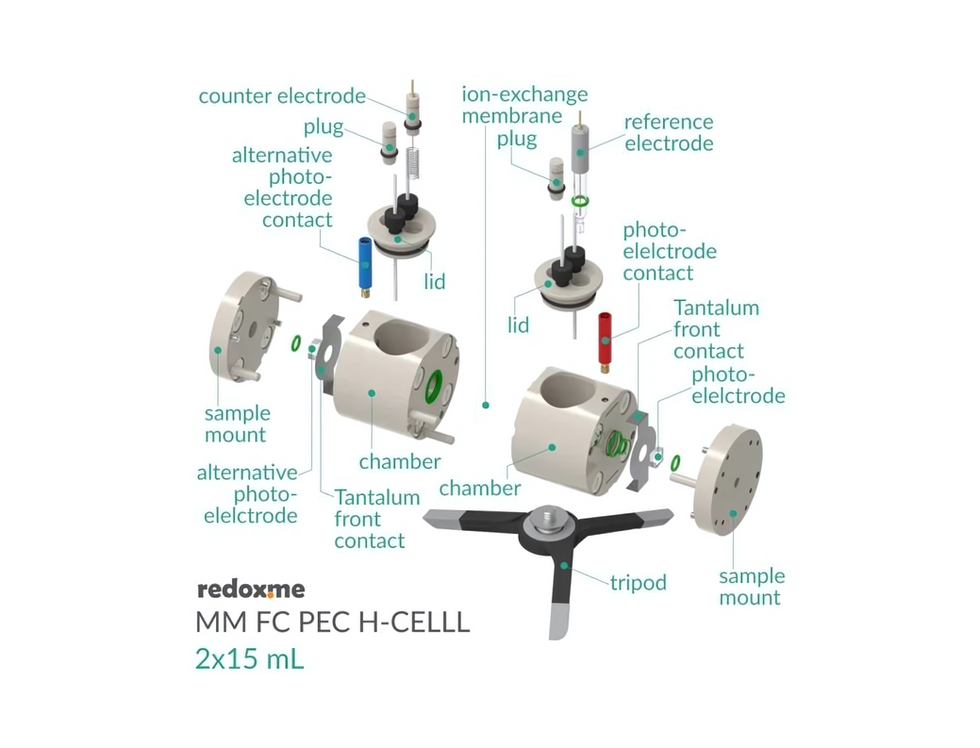

• 2 x lid – 0001CPEMA

• 2 x chamber

• 2 x sample mount

• 2 x Tantalum contacts

• 1 x micro tripod

• 4 x plug

• 1 x set of O-Rings (18 pcs)

Weight : 0.5 kg Dimensions : 100 × 100 × 100 cm Brand : Redox.me Accessory type : Cell Compatible with : EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT Electrolyte type : Organic solvent based, Water-based Aperture size : 11.3 mm dia. (1 cm2), 5 mm dia. (0.2 cm2)
