redox.me – Replacement chamber

Replacement chamber (50 ml) for Basic Electrochemical Cell Setup

  • Prefect fit for the Redox.me Basic Electrochemical Cell
  • Glass, PTFE or PEEK material available
  • 50 mL cell

Material

Quantity

Description

This is the replacement chamber for 50 mL Redox.me – Basic Electrochemical Cell

Application note

  • Glass chamber is typically used with acidic electrolytes.
  • PEEK chamber is used with alkaline electrolytes.
  • PTFE chamber is used whenever glass and PEEK material fail (see this Redox.me blog post for more details).

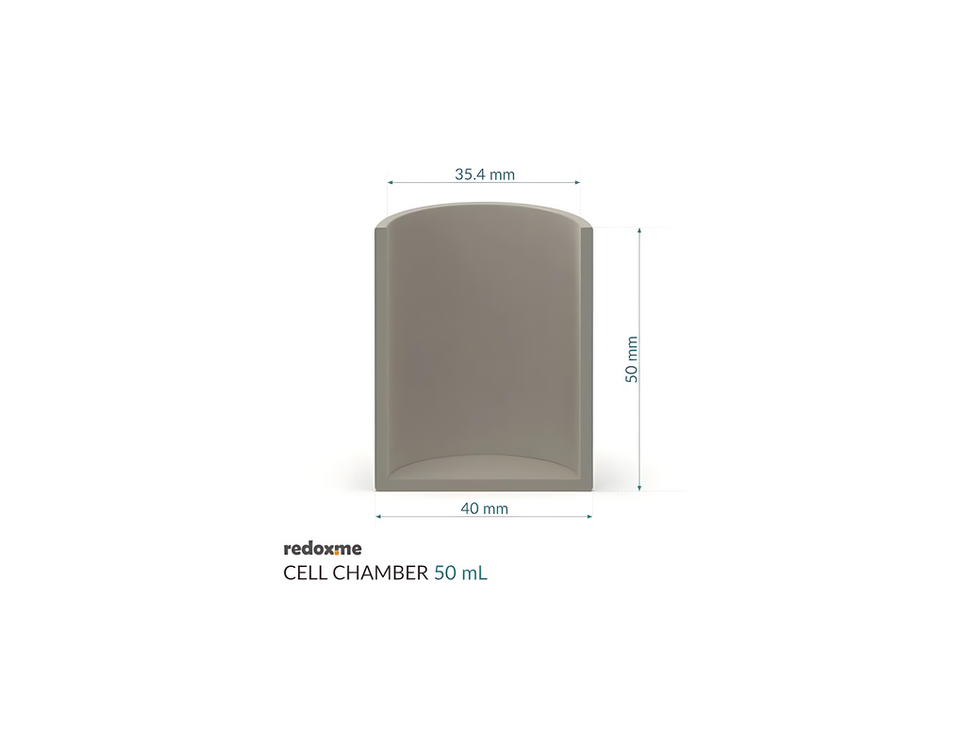

Specification

  • height: 50 mm
  • wall thickness: 2.3 mm
  • internal diameter: 35.4 mm
  • external diameter: 40 mm

Intrastat data

  • HS Code: 39269097 (PEEK, PTFE), 70172000 (glass)
  • Country of Origin: Sweden
  • NET weight: 100 g

Product includes

  • 1 x cell chamber 50 mL of selected material

Specifications

Weight : 0.1 kg

Dimensions : 40 × 40 × 50 cm

Brand : Redox.me

Accessory type : Cell

Compatible with : EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT

Material : Glass, PTFE, PEEK
