Redox.me – Static Voltammetry Cell

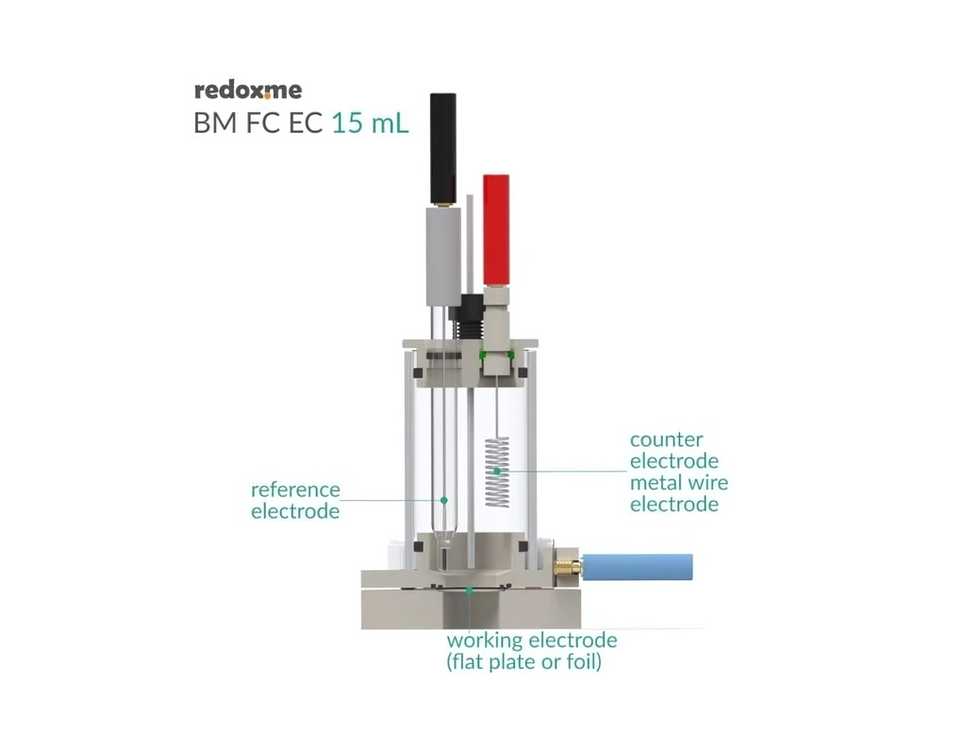

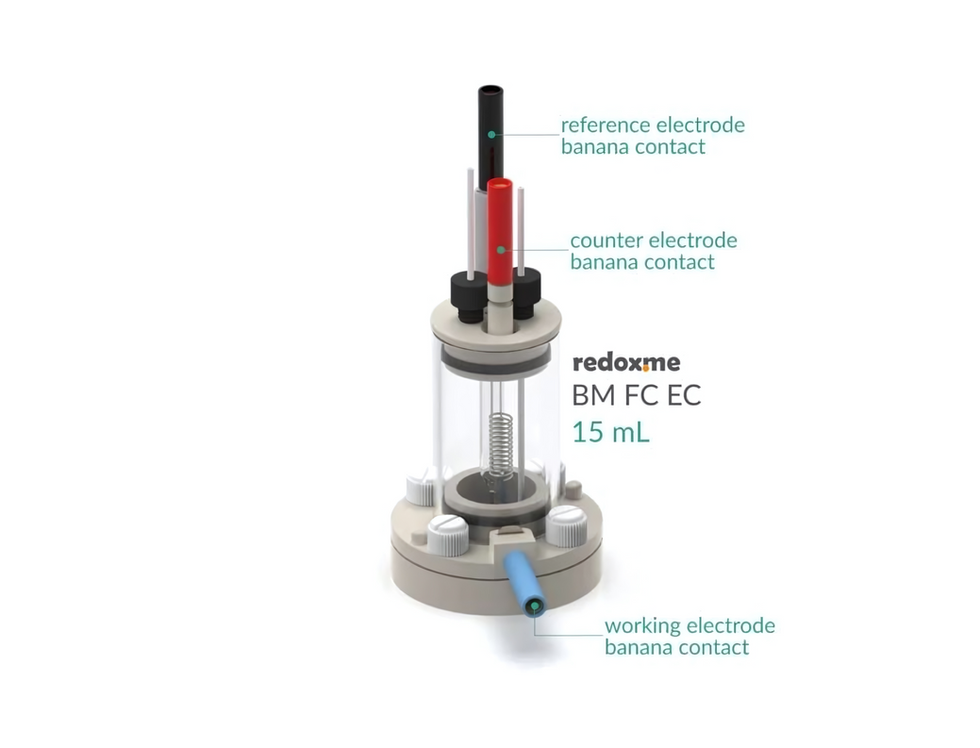

This is a static voltammetry cell with variants for different sample dimensions. The sample is loaded from the bottom via screw mount, while counter or/and reference electrodes are mounted in the lid as either 2-, or 3-electrode configuration. The cell is constructed with materials that are inert to the sample environment (glass and PEEK), and it can be used with FKM/EPDM O-rings or FFKM O-rings for aqueous or organic electrolyte requirements respectively. The construction is gas-tight and inert gas can be bubbled through the electrolyte to remove and exclude contaminants such as air or water.

Variants

• Water-based electrolyte
• Organic-based electrolyte

Application note

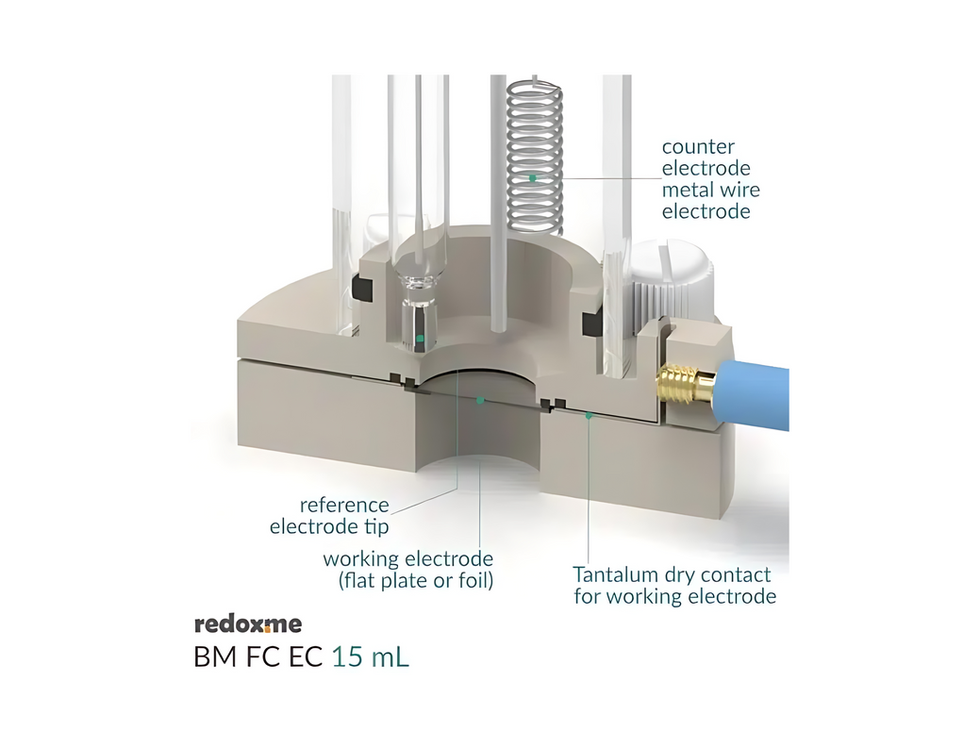

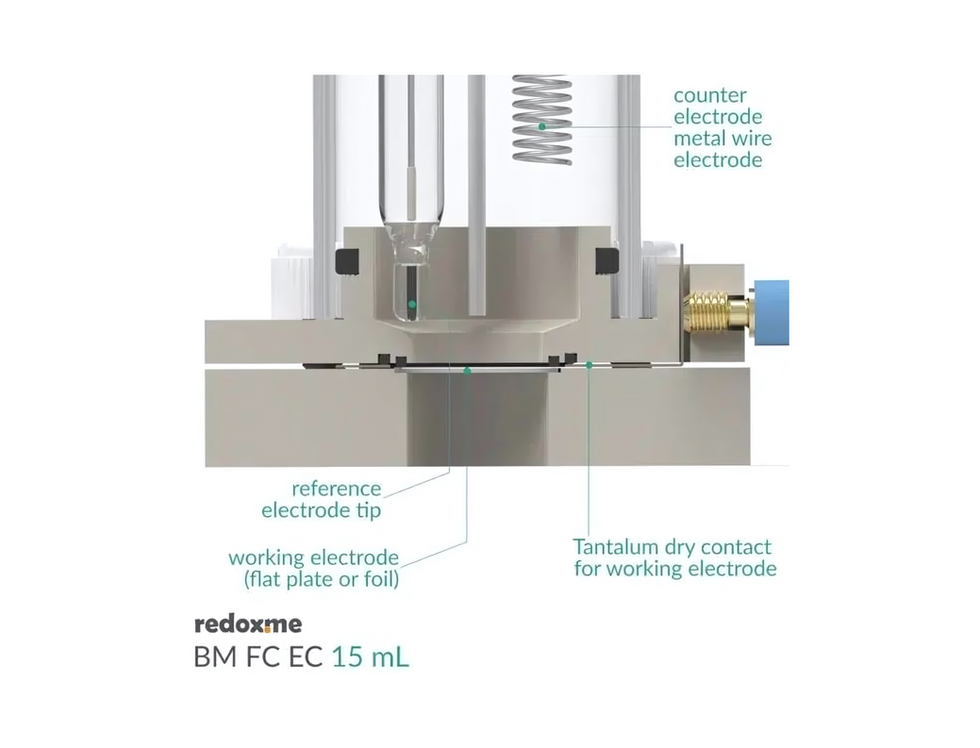

The reference electrode tip should be placed close to the sample surface to ensure a negligible potential drop throughout the electrolyte solution during low-current experiments. Various auxiliary electrodes are suitable for this cell including metal wire and metal plate electrodes as well as carbon-based electrodes (graphite or Glassy Carbon). If a purge gas is used, stop the flow during experiments for better results. For troubleshooting instruction see the redox.me blog post.

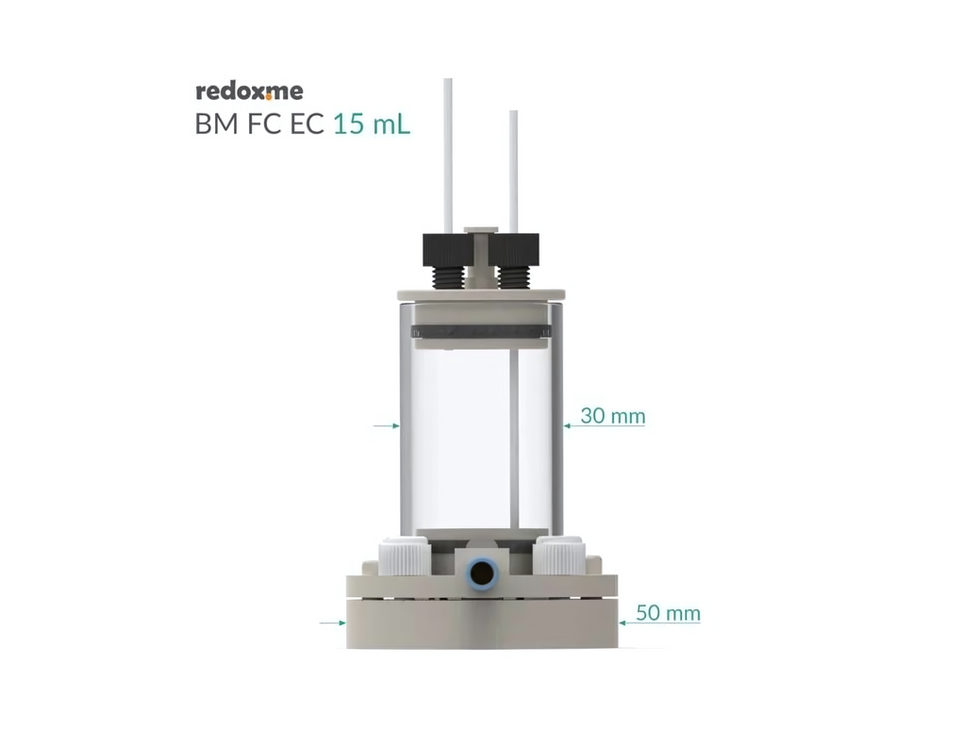

Specification

• nominal exposure area:
  • 0.07 cm2 for 5x5mm2,
  • 0.2 cm2 for 7x7mm2,
  • 0.5 cm2 for 10x10mm2, and
  • 1.33 cm2 for 15x15mm2
• minimum electrolyte volume: 2.5 mL
• maximum electrolyte volume: 15 mL
• electrode plug diameter: 6 mm
• substrate size: 5x5mm2, 7x7mm2, 10x10mm2, and 15x15mm2
• minimum substrate thickness: 0.4 mm*

*lower thicknesses are also feasible when using a pad below the sample

Intrastat data

• HS Code: 90309000
• Country of Origin: Sweden
• NET weight: 100g

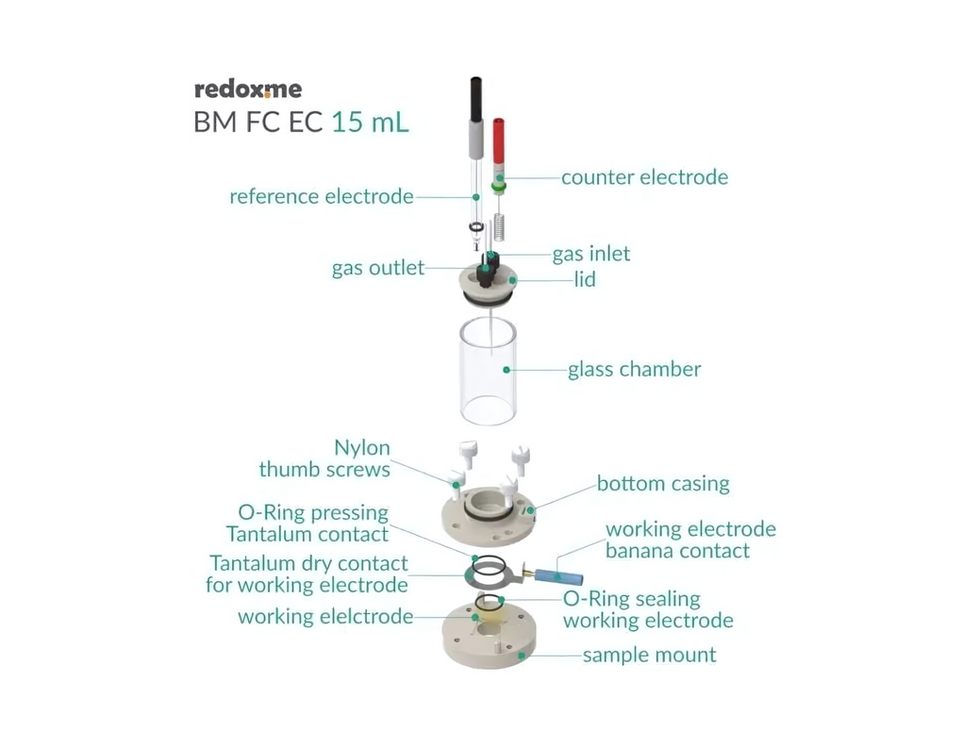

Product includes

• 1 x lid – 0001CPEMA
• 1 x glass chamber – 0002PGLMA
• 1 x bottom casing
• 1 x sample mount
• 1 x tantalum contact
• 1 x plug
• 1 x set of Nylon screws – 0032PNYCM

Weight : 0.1 kg

Dimensions : 75 × 50 × 77 cm

Brand : Redox.me

Accessory type : Cell

Compatible with : EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT

Electrolyte type : Organic solvent based, Water-based

Sample size : 5 mm x 5 mm, 7 mm x 7 mm, 10 mm x 10 mm, 15 mm x 15 mm
