RRDE-3A Ver.3.0
Rotating Ring Disk Electrode System
-Supports both RDE and RRDE measurements -Wide rotation range: 100 – 8,000 rpm -High rotation stability (<1% error) -Compact and lightweight (only ~3.5 kg) -Built-in inert gas purging system -Remote control via PC or potentiostat -Easy electrode replacement (modular design) -Quasi oxygen-free measurement environment
Please add items to cart and submit for quotation.
Quantity
Description

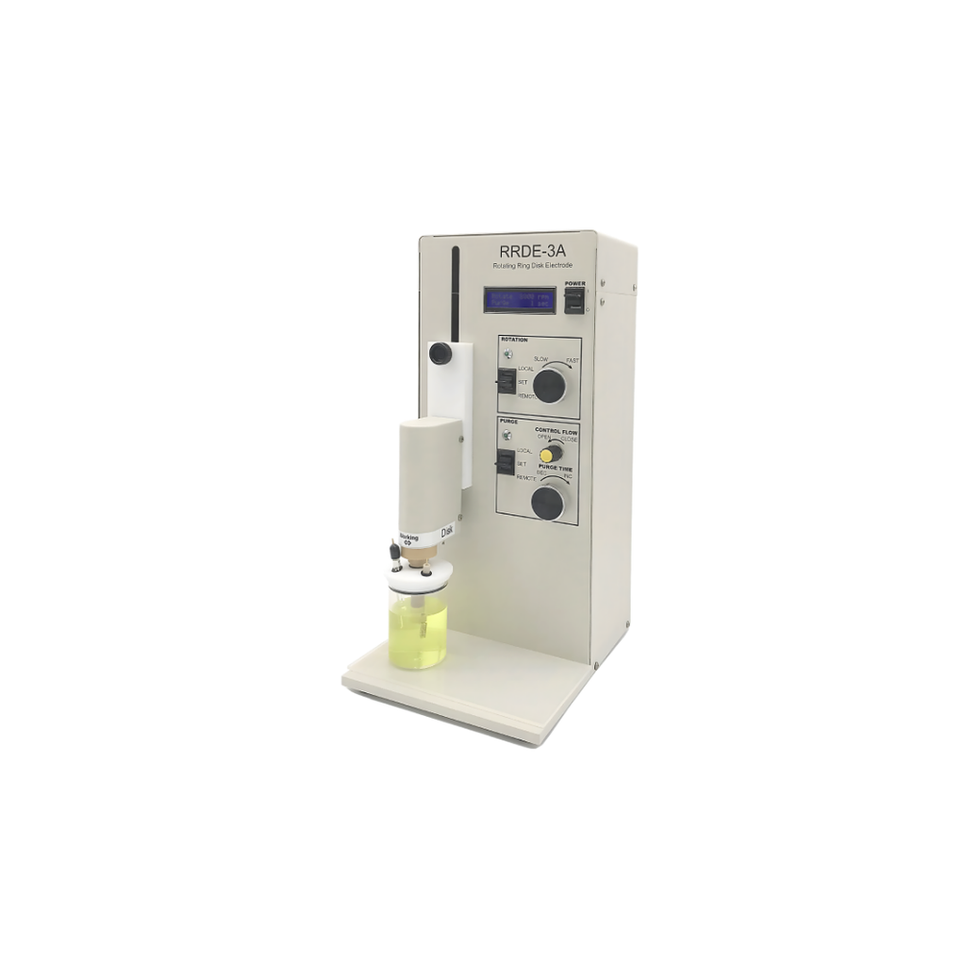

The RRDE-3A is a compact electrochemical rotator system designed for hydrodynamic electrochemistry using rotating disk or ring-disk electrodes. It provides precise control of mass transport by rotating the electrode at controlled speeds. The system uses a DC servo motor with closed-loop control, ensuring accurate and stable rotation. It also includes a built-in gas purging system, allowing experiments under low-oxygen conditions. Its modular design enables easy electrode exchange and compatibility with various potentiostats, making it suitable for advanced electrochemical research.
Specifications
Rotation speed : 100 – 8,000 rpm Rotation stability : <1% (low speed), <0.5% (high speed) Motor : DC servo motor (closed-loop control) Electrode system : Ring-Disk / Disk Insulation resistance : >10 MΩ Contact resistance : ~5 Ω Gas purge : Built-in (max 5 psi) Size : 190 × 230 × 400 mm Power : 12 VDC Operating temp : 10 – 50°C
Application
RRDE-3A is widely used in : Electrocatalysis studies (ORR, HER, OER) Reaction mechanism analysis Battery and fuel cell research Corrosion studies Kinetic and mass transport studies Detection of reaction intermediates (via ring electrode)
