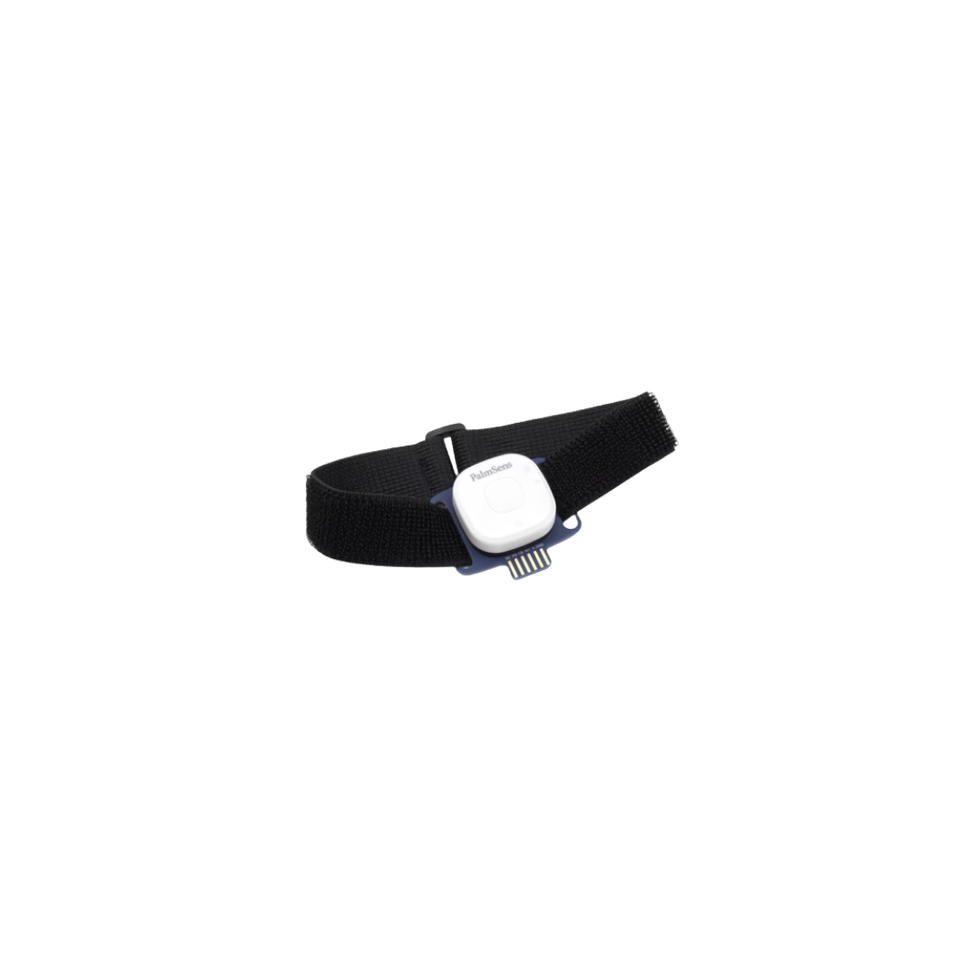

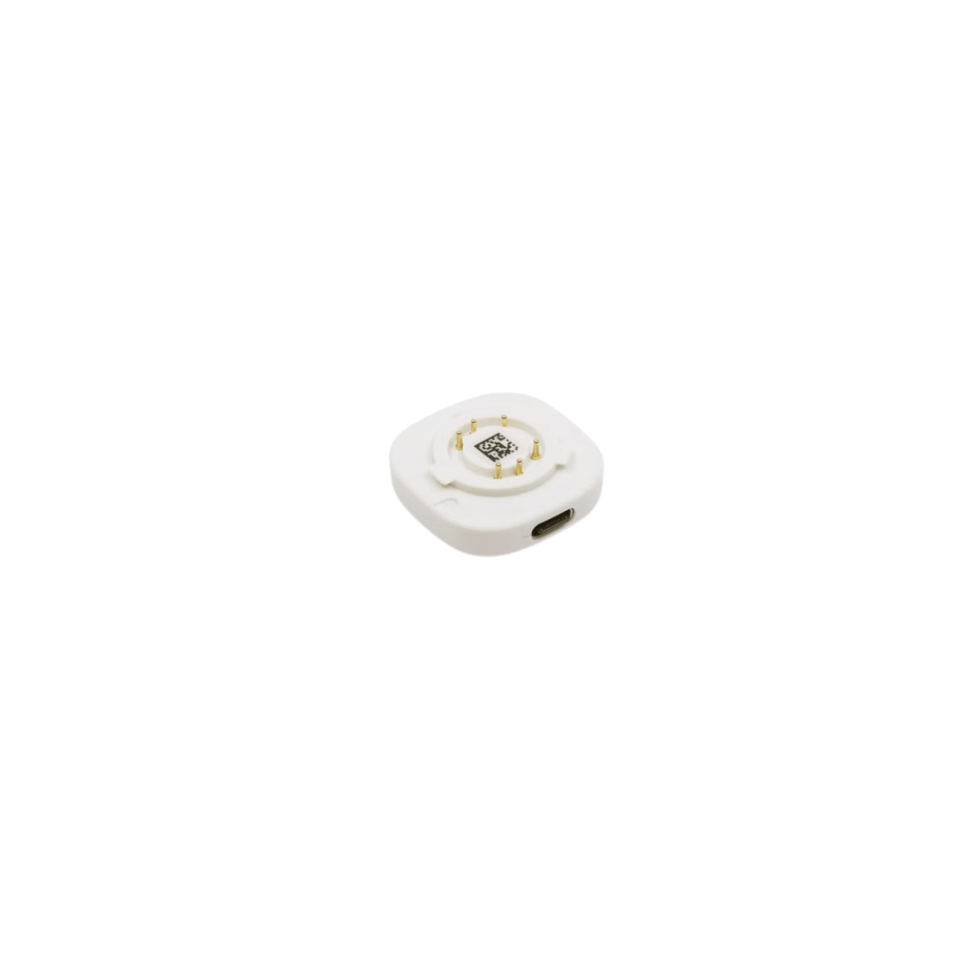

Sensit Wearable
Potentiostat for Wearable Biosensors
-Designed specifically for wearable and flexible biosensors
-Ultra-compact, lightweight (~10 g)
-Battery-powered with long operation (hours to weeks)
-Wireless communication (Bluetooth Low Energy)
-Supports bipotentiostat (2 working electrodes)
-Built on EmStat Pico Core technology
-Supports full electrochemical techniques (CV, SWV, EIS up to 200 kHz)
-Can run autonomous measurements using MethodSCRIPT™
Please add items to cart and submit for quotation.
Quantity
Description
Sensit Wearable is a compact electrochemical measurement platform designed to accelerate the development of wearable biosensors. It can be integrated into flexible patches or epidermal devices for non-invasive monitoring of metabolites and electrolytes.
The system operates autonomously using onboard scripts and stores data internally, enabling continuous monitoring over extended periods. It can be controlled wirelessly via smartphone (PStouch) or PC (PSTrace), making it ideal for real-world sensing applications outside the laboratory.
Specifications
Potential range : -1.7 to +2 V
Compliance voltage : -2.0 to +2.3 V
Current range : 100 nA – ±3 mA
EIS frequency : 0.016 Hz – 200 kHz
Data acquisition : ~1000 datapoints/s
Channels : 1 channel (2 working electrodes supported)
Communication : Bluetooth LE, USB-C
Storage : ~450k datapoints (~14 MB)
Battery : Rechargeable, multi-day operation
Size : ~35 × 35 × 12 mm
Application
Sensit Wearable is ideal for :
Wearable biosensors (epidermal patches)
Continuous glucose monitoring (CGM)
Sweat analysis for athletes
Biomarker detection (metabolites, electrolytes)
Point-of-care and remote patient monitoring
Smart health and fitness devices
