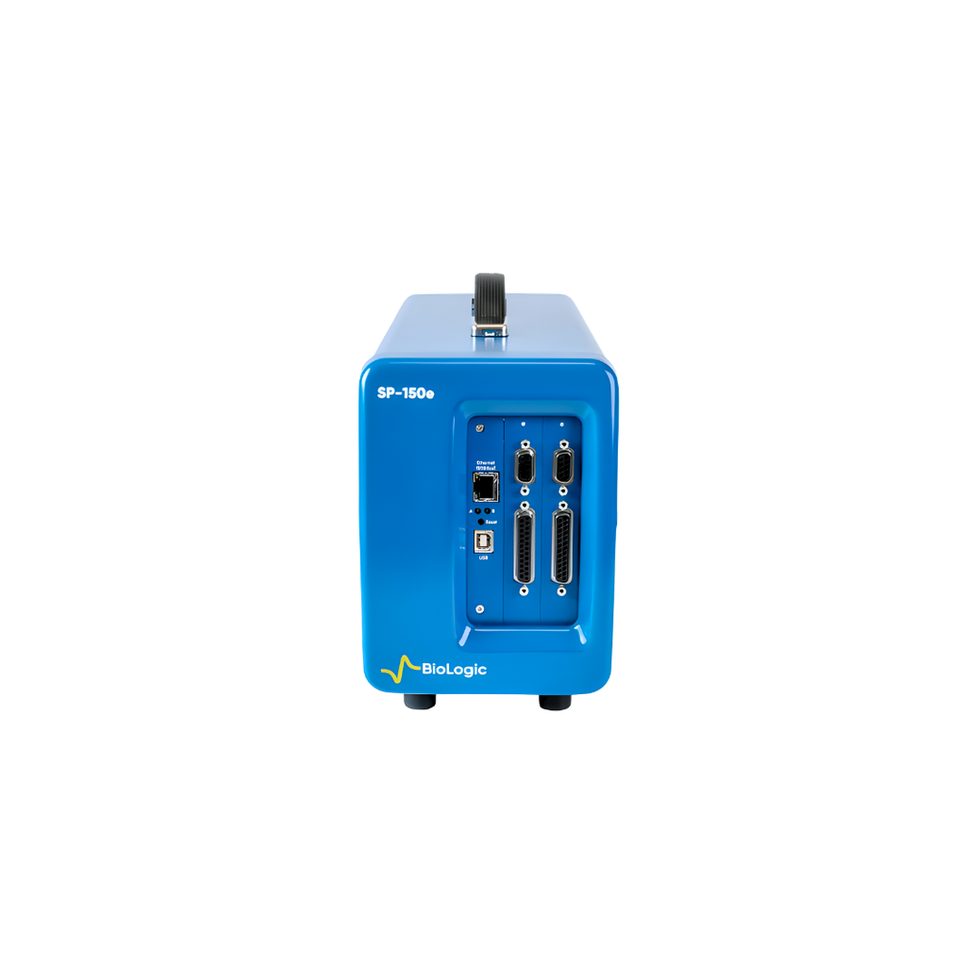

SP-150e Potentiostat
Modular High-Power Potentiostat
-Dual-channel system (up to 2 channels) -High current capability: ±1 A (expandable up to 800 A with boosters) -Wide EIS frequency: 1 MHz – 10 µHz -Built-in EIS Quality Indicators (THD, NSD, NSR) -Fully modular (upgrade in lab, no factory return) -Compatible with RRDE experiments -Ethernet + USB connectivity for multi-user control -Powered by EC-Lab® (advanced control + analysis software)
Please add items to cart and submit for quotation.
Quantity
Description
The SP-150e is a powerful and flexible electrochemical workstation designed to grow with research needs. It features a dual-channel configuration, enabling simultaneous experiments or advanced techniques such as RRDE. With a native ±1 A current range and the ability to scale up to 800 A using external boosters, it is particularly suited for energy-related applications such as batteries, fuel cells, and electrolysis systems. Its integration with EC-Lab® software allows full control, real-time analysis, and impedance fitting (Z-Fit) within a single platform, reducing workflow complexity.
Specifications
Channels : Up to 2 Compliance voltage : ±10 V (adjustable to ±20 V) Current range : ±10 µA to ±1 A Max current : ±1 A (up to 800 A with boosters) Current resolution : ~760 pA Voltage resolution : 5 µV – 305 µV Accuracy : <0.1% FSR EIS frequency : 1 MHz – 10 µHz Acquisition time : 20 µs (developer) / 200 µs Interfaces : Ethernet, USB Power : ~110 W
Application
SP-150e is ideal for : Battery & energy storage research Fuel cell & hydrogen systems Electrolysis and high-current systems RRDE (electrocatalysis studies) Corrosion analysis General electrochemistry & EIS studies
