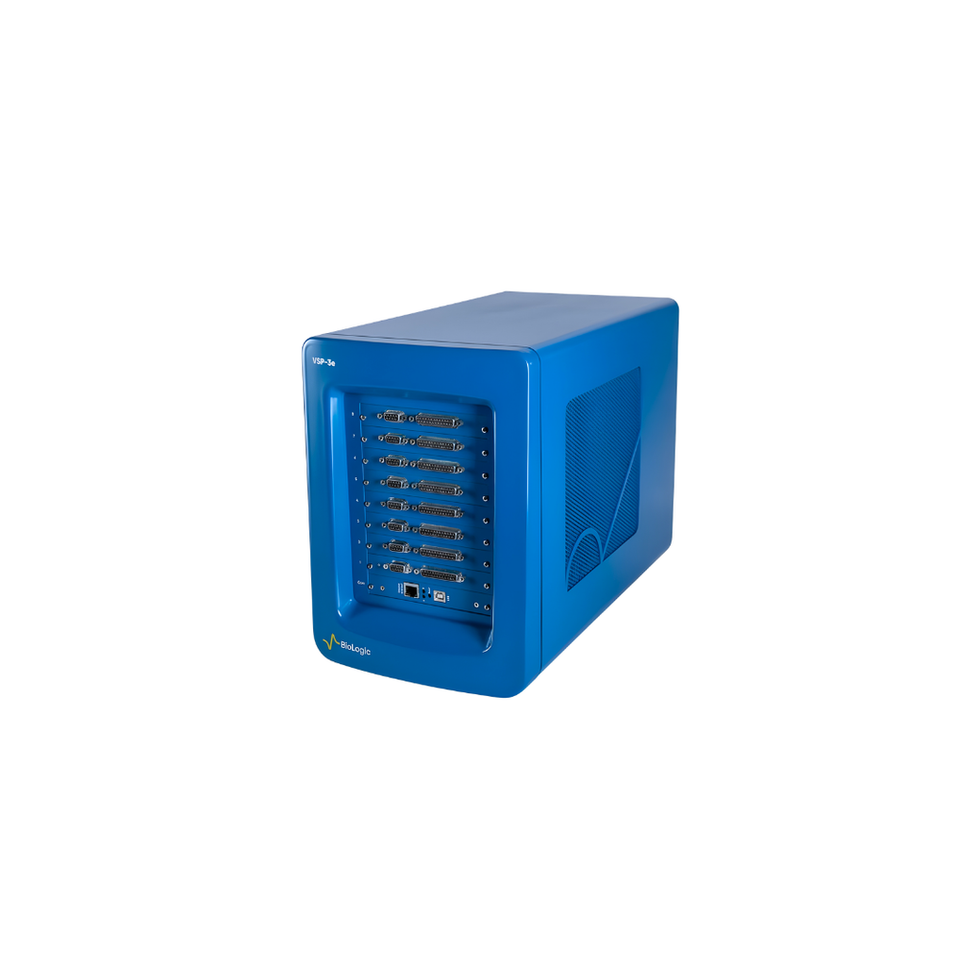

VSP-3e Potentiostat
Modular Multichannel Potentiostat / Galvanostat / EIS
-Up to 8 independent channels
- ±1 A per channel (expandable up to 800 A with boosters)
-Wide voltage compliance: ±10 V (extendable to ±20 V / 60 V optional)
-Built-in / optional EIS (10 µHz – 1 MHz)
-Fast acquisition: down to 20 µs
-Supports 2–5 electrode configurations
-Compact vertical design (space-saving)
-Powered by EC-Lab® software (industry benchmark)
Please add items to cart and submit for quotation.
Quantity
Description
The VSP-3e is a high-quality device used for studying energy-related electrochemical systems like batteries, fuel cells, and supercapac
Its modular architecture supports up to 8 independent channels, allowing both single and parallel experiments with flexible configurations.
With the ability to increase current (up to 800 A with additional equipment) and advanced EIS features, the system can be used for various tasks, from low-current tests to high-power battery evaluations.
The system is controlled by EC-Lab® software, offering advanced features such as real-time analysis and “modify-on-the-fly” experiment control.
Specifications
Channels : up to 8
Electrode connection : 2, 3, 4, 5 electrodes
Compliance voltage : ±10 V (adjustable to ±20 V, up to 60 V optional)
Sampling rate : 20 µs (developer) / 200 µs
Software : EC-Lab®
Interfaces : Ethernet (LAN/WiFi), USB
Power : ~1000 W
Application
VSP-3e is ideal for :
Battery & supercapacitor research
Electrochemical impedance spectroscopy (EIS)
Fuel cells & electrolyzers
Corrosion studies
Energy storage materials
Multi-sample electrochemical testing
Publications
